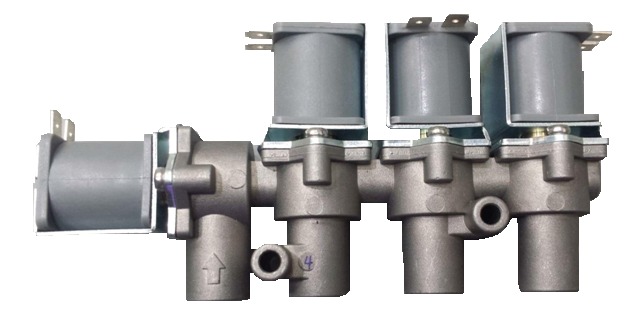

Techrite GM 924- 3, 2,1 Way Solenoid Valve
- AS Gas Approval : GMK 10373
- Model : GM 924
- Max Inlet Pressure : 7 kPa
- Temperature Limitation : -10 to +80⁰ C
- Max Flow (air):
- 1-Outlet model 0.86 M3/h at 250 pa pressure drop
- 2-Outlet model 0.91 M3/h at 250 pa pressure drop
- 3-Outlet model 0.97 M3/h at 250 pa pressure drop
- Voltage : 24 V DC
- Connection : 1/4" BSP (Inlet/Outlet)
- Class : II
- Gas Type : Town Gas, Natural Gas & LPG
- Mounting Position : Any position except Coil facing downwards
-
Serviceability : Non-serviceable
TECHRITE-TECHRITE-KUPO-GM-924-3-2-1-WAY-SOLENOID-VALVE-019041614228.PDF [PDF]
