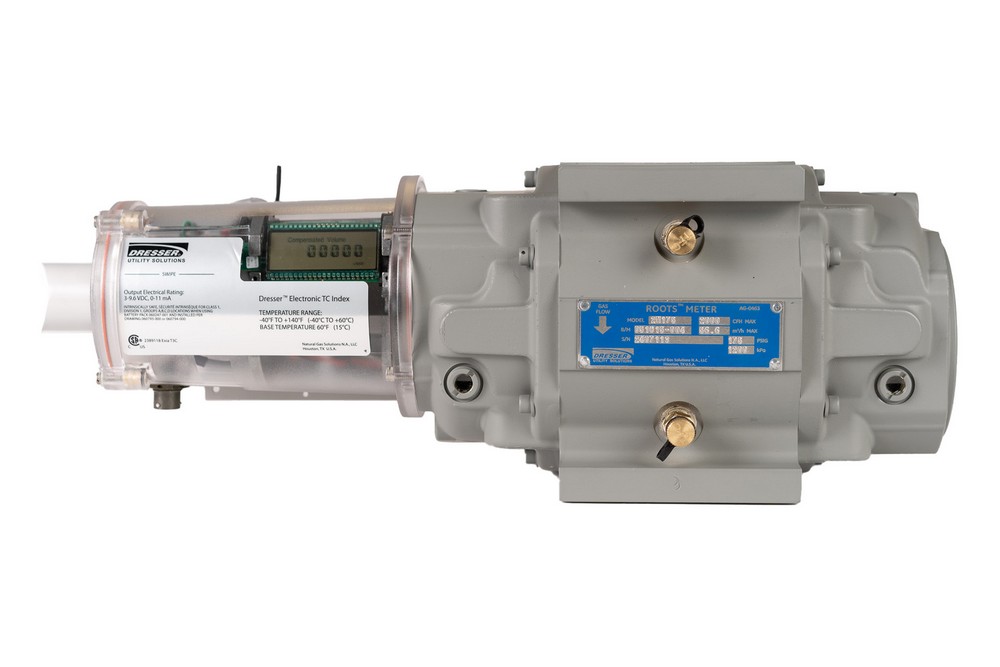

Series B3 meters are designed to provide accurate gas measurement over widely fluctuating flow, pressure, and temperature conditions. For further versatility, the five smallest meter sizes (8C through 3M) have 2” (50 mm) flanged connections, and a 6-3/4” (171 mm) flange-to-flange dimension. If application requirements change, this cost-effective feature allows a quick and easy meter exchange without the need to re-pipe the meter set. Other key features include:
• Capacity ratings from 800 CFH to 56,000 CFH (22,6 m3 /h to 1,585 m3 /h)
• Maximum operating pressure rating of 175 psig (12 Bar)
• Models 8C through 5M are available with a 200 PSIG (13,8 Bar) rating upon request
• Models 8C through 2M are available with a 1-1/2” nippled connections upon request
• Operating temperature range from -40°F to +140°F (-40°C to +60°C)
For operating requirements beyond those listed, please contact your Dresser Natural Gas Solutions (NGS) representative
